Alpine Audi player A4, A5, Q5

ATTENTION:
Installing the X703D-A player is NOT possible at home, so we recommend using a professional installer to install the player.

X703D-A5

• Audi A5 2007-2016 (Chorus, Concert, Symphony)
• Not for cars with Audi MMI Navigation or Navigation plus
• The Audi A5 always requires the G-KTX-A4L installation kit, which is sold separately.

X703D-A4

• Audi A4 2007-2015 (Chorus, Concert, Symphony)
• Not for cars with Audi MMI Navigation or Navigation plus
• Audi A4 always requires the G-KTX-A4L installation kit, which is sold separately.

X703D-Q5

• Audi Q5 2009-2015 (Chorus, Concert, Symphony)
• Not for cars with Audi MMI Navigation or Navigation plus
• The Audi Q5 always requires the G-KTX-Q5L installation kit, which is sold separately.

High Resolution touch screen

The 7″ (17.8cm) touch screen of the X703D-A player gives you access to the entire hardware. The accurate and detailed display shows, for example, the navigation map view very clearly, and the display's user interface is logical. The 7″ touchscreen integrates perfectly with your Audi.

Steering wheel buttons
X703D-A is compatible with original Audi steering wheel buttons. You can adjust the volume, answer calls, change songs and also use other functions. You can also start the voice control of Android Auto or Apple CarPlay with the buttons on the steering wheel.

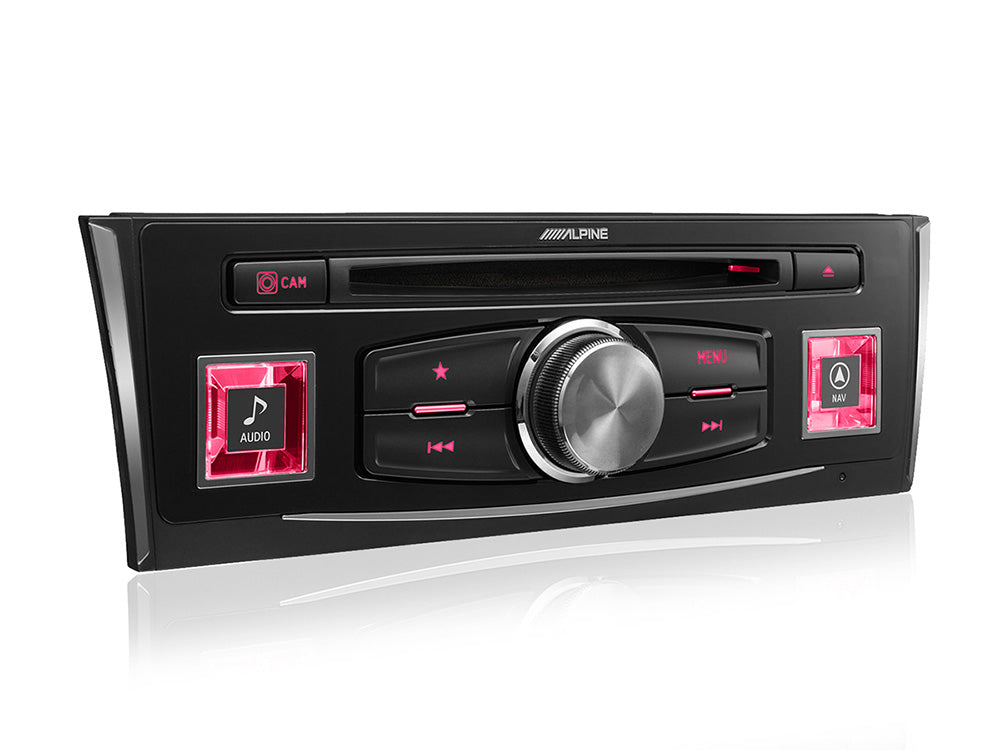

Control panel
Audi's original control panel is replaced by Alpine's panel, which fits your car's dashboard perfectly both physically and in appearance. Thanks to the large buttons, it is easy to change the program sources, for example, and if you wish, you can display the image of the reversing camera with one press of a button.

Instrument panel info display
X703D-A is connected to Audi's instrument panel. You can see the name of the radio channel playing in the instrument panel and other information about the program source. The instructions for the built-in navigation are also included in the car's instrument panel.

Warnings and Notices
Audi's original screen acts as an information center for the car's information. Alpine also displays all the warning messages given by the car (oil level, tire warnings, etc.).

Sound System
If your car is equipped with an Audi Sound 9VD or Bang & Olufsen 9VK audio package, you need the KWE-DY01G6 adapter, which allows the X703D-A to be connected to the Sound System.

Top class sound quality
Alpine is known worldwide for top-notch sound quality, and the X703D-A is no exception. Audi's acoustics have already been taken into account in the design of the player, and you can also make adjustments to the equalizer and channel-specific time delay adjustments yourself.

Support for reversing camera and radar
The X703D-A is compatible with Alpine's Multi-View cameras, so you can change the angle of the cameras directly from the touch screen. If your car has the original reversing radar, you can also see it on the screen if you want.

KIT-R1AU camera adapter for Alpine camera
Alpine HDR cameras with top-class image quality are easy to install with the KIT-R1Au camera adapter. The camera adapter replaces the original opening handle and corresponds to the quality of the OEM part.

Entertainment on the big screen
X703D-A allows watching video files on a 7″ screen. You can get, for example, Alpine's CD/DVD player as an accessory. Due to traffic safety, video files can only be viewed when the car is stationary.

Apple CarPlay
Apple CarPlay brings additional features to iPhone users. You can use Spotify, listen to internet radios or podcasts, and manage calls directly from Alpine's touch screen.
You just connect Apple with a USB cable and all CarPlay functions are enabled.

The Apple CarPlay information page can be found here.

Android Auto
The simple and straightforward user interface keeps your eyes on the road and using the phone's functions is really easy. Android Auto* automatically brings all the most interesting information to the player's screen and organizes them into cards on the screen.
Both Android Auto and Apple CarPlay use the X703D-A GPS antenna to get the most accurate and fast location information, compared to the phone's own GPS antenna.
Note Android Auto is pre-installed in Android 10, Android 11 and Android 12 operating systems. If you are using Android 9 or an older version, you need to install Android Auto on your phone manually.

The Apple CarPlay information page can be found here. can be found here.

Spotify
You can use Spotify's functions from the Alpine's screen with Apple CarPlay or AndroidAuto. The application works with Spotify's Basic and Premium accounts, but the features used may differ depending on the user account.

DVD/CD player
You can also get a DVD / CD player for the X703D-A player. The DVE-5300X is installed behind the X703D-A control panel and the connection is made with an HDMI cable, to guarantee the best possible picture and sound quality.

Bluetooth
Built-in Bluetooth allows you to connect your phone wirelessly and you can use the hands-free function, and you can also wirelessly play music from your phone (e.g. Spotify or various internet radios). The Bluetooth software can be updated and the compatibility of different phones is also secured in the future.

DAB and RDS radios
In addition to the traditional RDS tuner, the X703D-A contains a DAB/DAB+/DMB digital tuner, which guarantees the best possible sound quality and an innumerable number of digital radio channels compared to a traditional FM radio.
Note: DAB/DAB+/DMB broadcasts are not available in Finland.

iGO Primo navigation

iGo Primo NextGen navigation is one of the best navigation software on the market and this, combined with Alpine's powerful processor, makes navigation and route calculation really fast. It only takes a few seconds to calculate a route of a thousand kilometers, and if you deviate from the given route, the replacement route is calculated very quickly.

Navigation in a nutshell:

• Map database of 48 European countries
• Maps can be updated via www.naviextras.com
• Updates can also be purchased only in the desired part of Europe, which reduces the update costs
• Address search is also possible by postal code (this avoids the confusion of nearby streets with the same name)
• Intelligent route selection that takes into account the time of day and route history
• High Resolution maps

TomTom maps, with three years of free updates
A navigation device is only as good as its map database. Alpine X703D-A contains TomTom maps of 48 European countries. There are three years of free updates for the maps (time counting starts when the device first gets a satellite connection). After three years, updates can be downloaded for a fee from www.naviextras.com on a PC and you can update the entire European map or alternatively buy the new updates for the part you want.

The Alpine X703D-A comes with the latest maps and the latest software, so once you buy the device, it's ready to use right away.

GPS and Glonass positioning
The more satellites in use, the more accurate the navigation. In addition to GPS positioning, the X703D-A also uses Glonass satellites, which provides even more accurate and reliable location information, especially when driving near tall buildings and in the mountains.

One Look display
Alpine's innovative One Look display enables navigation and audio information to be displayed at the same time. Thanks to this, there is no need to change the view through any complicated menus, but you get all the necessary information at a glance.

POIs of interest
You can search for interesting POIs (Points of interest) by name, type, distance or other search criteria. This makes it easier, for example, to find a favorite restaurant or gas station nearby. The restaurant information also includes phone numbers, so you can easily call and make, for example, a table reservation.

Google Maps - Online navigation
Let Google Maps get you there. Google maps offers lane guidance, real-time traffic information and guidance in Finnish. Google Maps is available via AndroidAuto and Apple CarPlay.

Waze - Online navigation
Waze is the world's largest user-based traffic and navigation application. Join the group of Waze users and you can share and receive real-time traffic information about, for example, crashes, traffic jams or police traffic controls. Waze is available via AndroidAuto and Apple CarPlay.

TECHNICAL INFORMATION:

• IN GENERAL
  • 4 x 50W amplifier
  • 7″ capacitive WVGA touch screen
  • 50/50 Split Screen screen sharing
  • 3 pairs of four-volt line outputs (front/rear/subwoofer) Requires KTX-PRE1 cable
  • 1 x A/V AuxIn
  • HDMI input
  • "My favorites" function
  • Customizable menus for two different users
  • Connection for Alpine Direct reversing camera
  • Clock
  • Automatic brightness adjustment
  • RDS radio
• RADIO
  • RDS tuner (PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT)
  • 24 FM memory slots
  • DAB+ tuner
• BLUETOOTH
  • HFP HandFreeProfile
  • A2DP music streaming
  • AVRCP music management
  • SSP Simple secure pairing
  • Max. five different numbers for one name
  • Automatic reply
  • Call history (Incoming / Dialed / Missed)
  • Signal strength indicator
  • Battery charge status indicator
• IPOD / IPHONE COMPATIBILITY:
  • iPod touch 5th/4th/3rd/2nd/1st Gen., iPod nano 7th/6th/5th/4th/3rd/ Gen., iPod classic 160GB/120GB/80GB, iPod with video, iPhone 6 and 6 Plus, iPhone5S,iPhone5C , iPhone5, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G
  • Interface: KCU-461iV (audio and video), KCE-471i (audio)
  • Alphabetical search
  • Album cover display
  • Charging via USB connection
• NAVIGATION
  • Maps of 49 countries
  • Menus: 29 different language options
  • Advanced Address Search
  • Postal code search
  • POIs
  • Seven different route options
  • Map views: 2D, 2D north up, 3D
  • 3D City View
  • 3D motorway junctions
  • Lane guidance
  • Tunnel view
  • Highway view
  • Guidance in Finnish
  • Accurate and fast positioning: GPS / Glonass / Accelerometers / Car speed signal
• USB
  • Music playback: FLAC / MP3 / WMA / AAC
  • File/folder search
  • Search for TAG data
  • MIX mixed play
  • Replay
• VOLUME ADJUSTMENTS
  • BassEngine SQ
  • BassEngine PRO
  • Subwoofer level control and phase reversal
  • 4V line outputs (front/rear/sub) Requires KTX-PRE1 cable
  • 9-band parametric equalizer
  • Six channel time delay controls
  • Distribution filters
  • Alpine TuneIt compatibility

Audi Sound / Bang & Olufsen
If your car is originally equipped with Audi Sound 9VD or B&O 9VK, you need the KWE-DY01G6 adapter. This allows the Alpine to be connected to the car's original amplifier.

Connection for amplifiers
KTX-PRE1 front, rear and subwoofer line output sold separately.

Boot Logo Options:

Software update:
An update that brings camera pole warnings to your player.
Download the installation instructions here.
Download the update file here.

DVR-C320S compatibility
This player is compatible with the Alpine DVR-C320S dash cam. You can watch the camera recordings on the player's screen and you can change all the camera's settings on the touch screen.
