- DSP Processor: Cirrus Logic CS47048
- Power: 150 MHz/32 bit/192 KHz
- 8-Channels IN, 8-Channels OUT
- ADC: Cirrus Logic CS47048 32 bit/192 KHz
- ADC Dynamic Range/THD: 108 dB/-98 dB
- DAC: Cirrus Logic CS8422 24 bit/192 KHz
- DAC Dynamic Range/THD: 140 dB/-120 dB
- Low level (Pre)/Sensitivity: 1-5 VRMS
- High Level (Spk In)/Sens.: 2-20 V
- Digital Inputs: 24 bit-192 KHz
- Frequency Response (-3dB): 10 Hz - 22.5 KHz
- S/N Input: 110 dBA (D) - 106 dBA (A)
- THD Input: 0,002% (D) - 0,005% (A)
- Crosstalk at 1 Khz only DSP: 90 dB
- F/R EQ: 1-6 ch Gr. & Par./31 poles
- Effect EQ: 7-8 ch Gr. & Par./11 poles
- Mute/Solo: Yes, each channel
- Time Align. (Range/Steps): 0/15 ms / 0.02 ms
- Max Delay (Cm/Steps): 515 cm / 0.68 cm
- Polarity: 0/180°

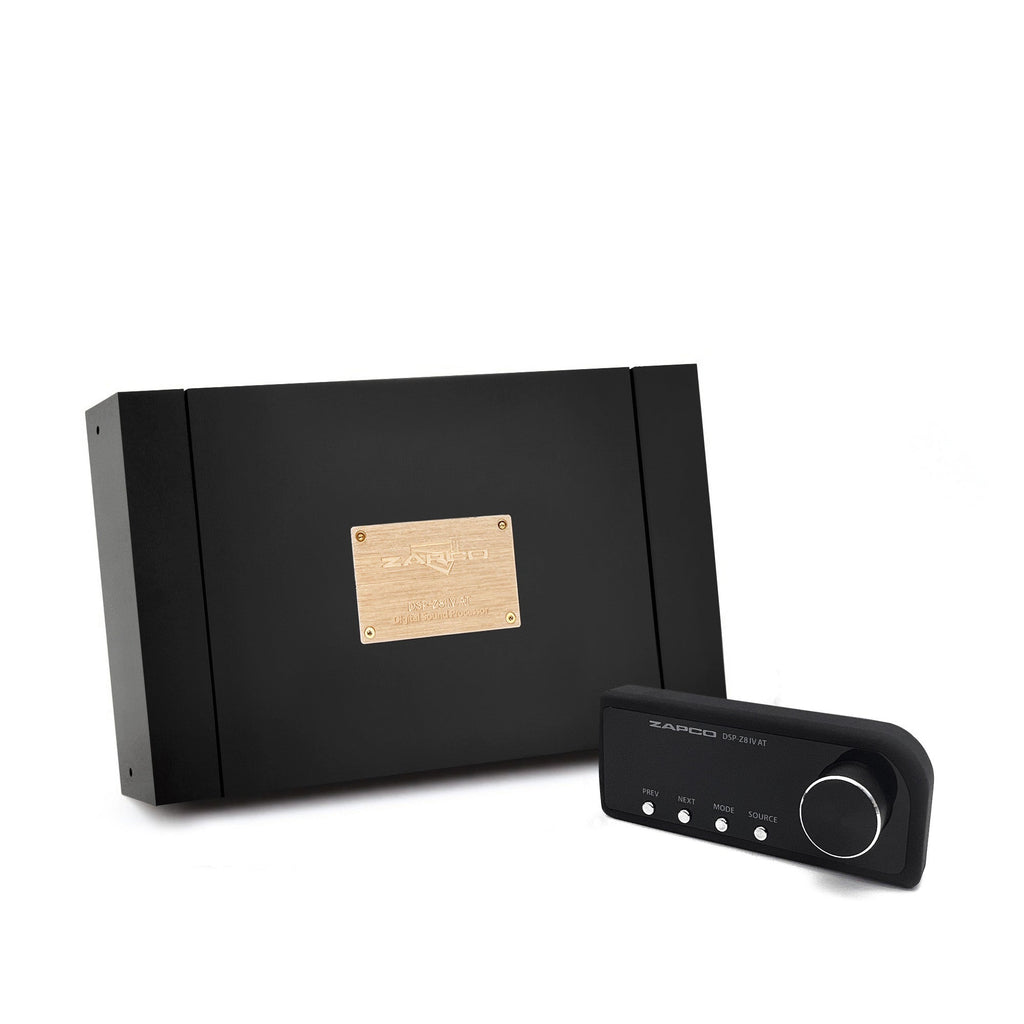

- Remote Control included
- HD-BT Streaming (with optional HD-BT II-D)
- Dimensions (mm): 213(W) x 113(L) x 50(H)
