Experience massive THX sound and cinematic 8K picture quality. The Onkyo TX-NR6100 is a versatile 7.2-channel DAA (Dynamic Audio Amplification) supported AV receiver that produces reference-level sound together with 8K/60p and HDR10+ images via HDMI 2.1 connections. Enjoy Dolby Atmos and DTS:X surround sound with your height channel surround speaker system, or take advantage of DTS and Dolby upmixing and virtual solutions that create immersive 3D surround sound from any setup.
Control music anywhere in your home effortlessly with Ok Google or Alexa voice control, and connect a second monitor to the HDMI Sub/Zone 2 output. Built-in Chromecast, AirPlay 2, DTS Play-Fi and Works with Sonos cover all multi-room playback needs. If you connect passive speakers to the amplifier, you can switch between 7.2/5.2.2-ch and 5.2-ch + Zone 2 configuration with just the push of a button via the Zone 2 speaker terminals.
The amplifier's HDMI 2.1 section supports 8K/60p, dynamic HDR pass-through (including HDR10+ and Dolby Vision) to supported TVs, projectors or gaming monitors connected to the eARC-supported HDMI Main output. HDMI inputs 1-3 and the Main/Sub output support HDMI 2.1 features.
In addition, the amplifier includes, among other things, a radio tuner, a high-quality MM phono preamplifier for connecting a vinyl player, and two-way Bluetooth, which enables wireless music streaming either from a smart device to the amplifier or from the amplifier to your wireless Bluetooth headphones.
HDMI 2.1:
- 8K/60p, 4K/120p
- 4:4:4
- HDCP 2.3
- VRR / ALLM / QFT / QMS
- eARC
- HDR10+, Dolby Vision, HDR10, HLG, BT.2020, Deep Color, xvColor
- LipSync

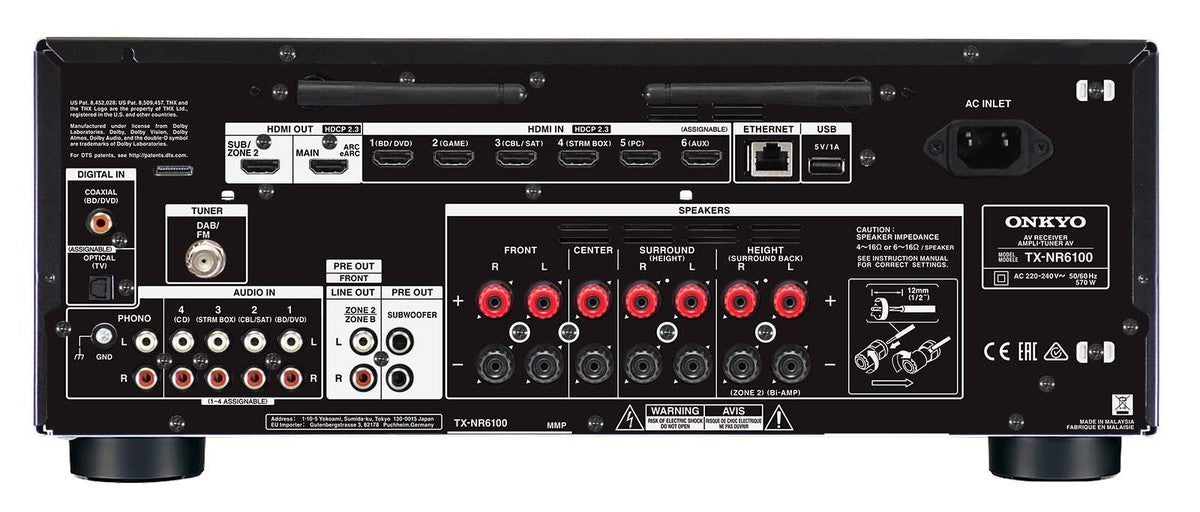

Connections:
- 6 x HDMI inputs
- 2 x HDMI outputs (Main [eARC], Sub/Zone 2 - supports second monitor)
- Inputs: 1 x optical, 1 x coaxial, 4 x analog (RCA), 3.5 mm connection for room correction microphone, 1 x Phono (MM)
- Outputs: 6.35mm headphone output, 2 x subwoofer pre-out, Zone 2/Zone B (RCA line out/Front L/R pre-out)
- 7 x connectors for speakers (binding posts)
- Ethernet
- USB connection for audio playback
- AC connection (detachable power strip)
Media playback:
- SMART AV Receiver multi-room platform
- FM radio tuner with 40 memory locations
- Hi-Res Audio network playback via network and USB (DSD256/DSD128/DSD64 [DSDIFF/DSF], FLAC, WAV [RIFF], AIFF and ALAC (192 kHz/24-bit)
- SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichannel)
- Bluetooth (send and receive)
- Compatibility: Chromecast built-in, Ok Google, Alexa, Works with Sonos, Airplay 2, DTS Play-Fi, FlareConnect, Spotify, Amazon Music, TIDAL, Deezer, TuneIn and more
- DTS Play-Fi multi-room playback with Onkyo Music Control
- Roon Tested
- USB playback from mass memories (DC 5V/1A - connection on the back panel)
- THX listening modes for movies, music and games
Features:
- Power amplifiers: 7
- Power: 175W/channel (6Ω, 1kHz, 10% THD, 1 channel loaded)
- Power: 165W/channel (6Ω, 1kHz, 1% THD, 1 channel under load, IEC)
- THD+N: 0.08% (20 - 20,000 Hz, half power)
- Tone control: ±10 dB, 20 Hz (Bass), ±10 dB, 20 Hz (Treble)
- Signal to noise ratio: 106 dB (line level), 80 dB (phono)
- Speaker impedance 4 Ω to 16 Ω
- Frequency response: 10 - 100,000 Hz /+1dB, -3dB (Direct mode)
- THX® Certified Select
- 5.2.2-ch Dolby Atmos and DTS:X playback
- Dolby TrueHD and DTS-HD Master Audio decoding
- Dolby Atmos Height Virtualizer and DTS Virtual:X 3D
- Dolby Surround and DTS Neural:X 3D upmix
- AccuEQ room calibration with AccuReflex and sunwoofer EQ
- PLL (Phase Locked Loop) anti-jitter technology for S/PDIF audio
- Power consumption: 570W; Standby: 0.15W
- Dimensions (WxHxD): 435 x 173.5 x 379.5 mm
- Weight: 9.8 kg
- Included: FM internal antenna, microphone for room calibration, quick start guide, remote control, 2 x AAA batteries
