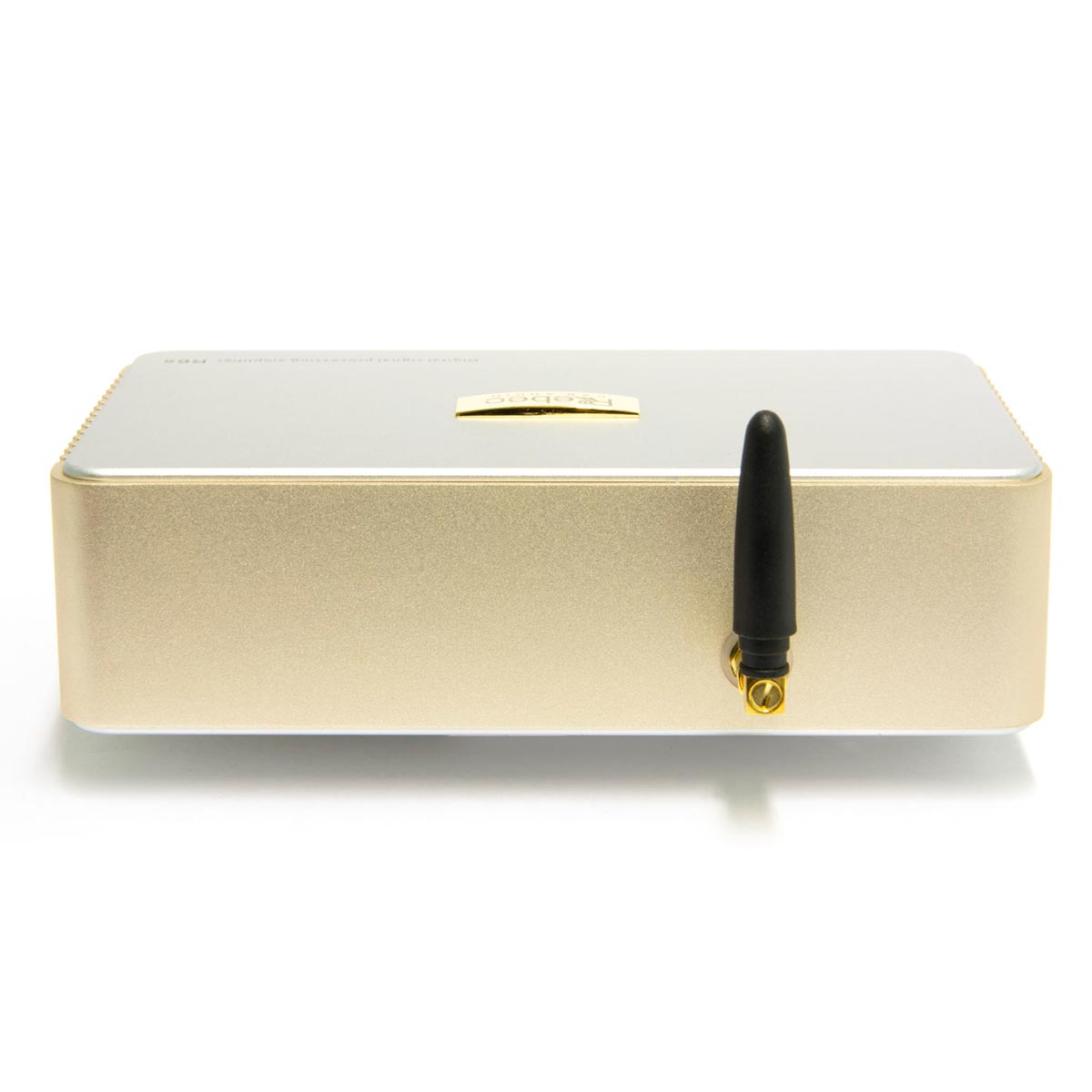

REBEC R6S

The Rebec R6S is a really compact DSP amplifier, which is especially intended as an extension of the car's original sound system.

Due to its small size, the amplifier is easy to install in a car, for example behind the glove compartment or inside the dashboard. The amplifier is connected to the back of the car's current player, with a separately purchased Plug & Play cable set.

With the Rebec R6S amplifier, you will significantly improve the sound world of your car, because the amplifiers of the car's factory-installed players are more or less inefficient, which is why especially the mid-bass reproduction suffers when the amplifier power of the factory-installed player ends helplessly. The lack of power becomes concrete at the latest when better speakers are replaced in the car, which, for example, require more power due to lower sensitivity. The Rebec R6S solves this problem, because it contains a 4 x 65W amplifier, so you can get more dynamics in the playback.

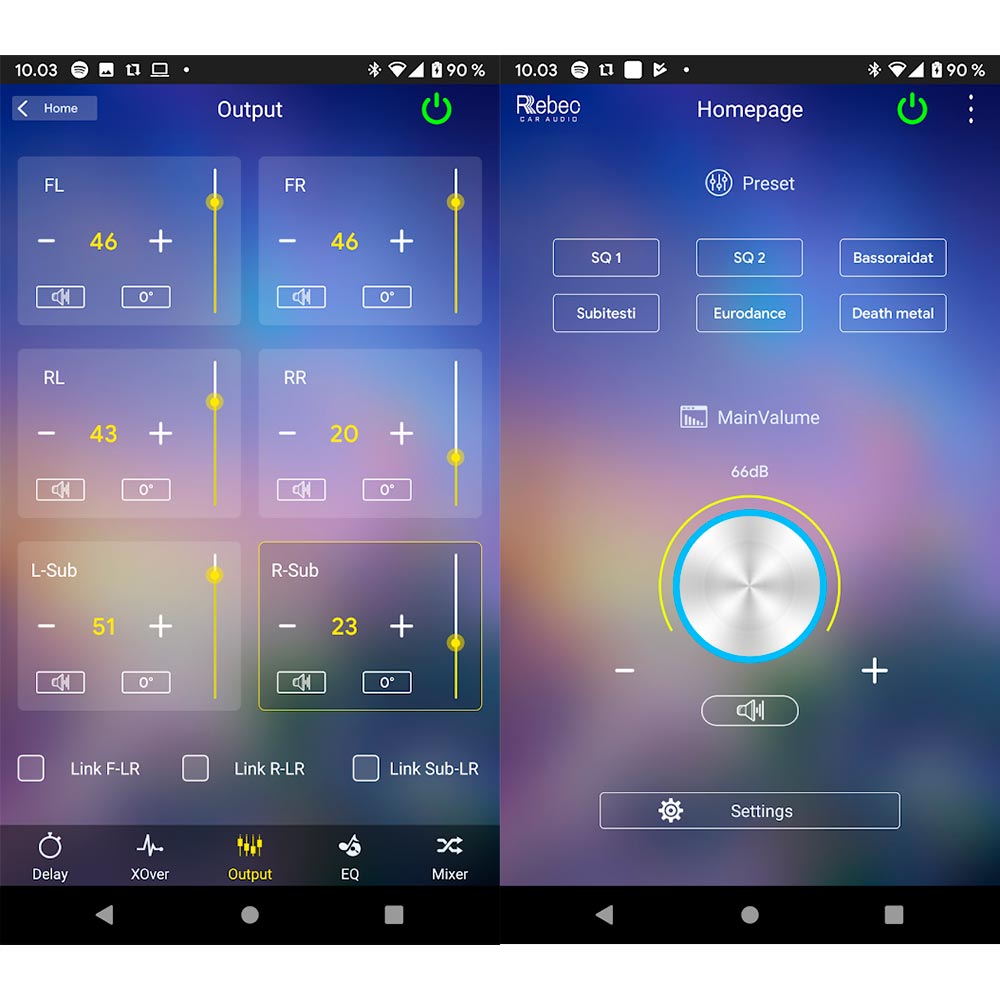

Sound editing is the next stumbling block with the original player. These instruments usually have bass and treble controls, touching which does not necessarily take the sound in a much worse direction. The Rebec R6S includes, for example, channel-specific time delay adjustments, channel-specific high-pass and low-pass filters, a channel-specific 31-band equalizer, and all these adjustments can be made with a free iOS and Android phone application or by connecting the amplifier to a computer.

The amplifier's built-in Bluetooth also enables streaming music from the phone directly to the amplifier.

Features of the signal processor:

• Individual time delays for six channels
• Six-channel channel-specific Low-pass filters (20Hz -20,000Hz)
• Six-channel channel-specific high-pass filters (20Hz – 20,000Hz)
• Low pass slope: 12/18/24/30/36/42/48dB / Oct.
• High-pass steepness: 12/18/24/30/36/42/48dB / oct.
• Delay adjustments according to distance: 0 – 692cm / 1cm steps
  Delay settings in milliseconds: 0 – 20,000ms
• Channel-specific level adjustments for six channels and phase reversals 0/180°
• A channel-specific 31-band equalizer for six channels
• Six memory locations for settings
• Master Volume
• Muting

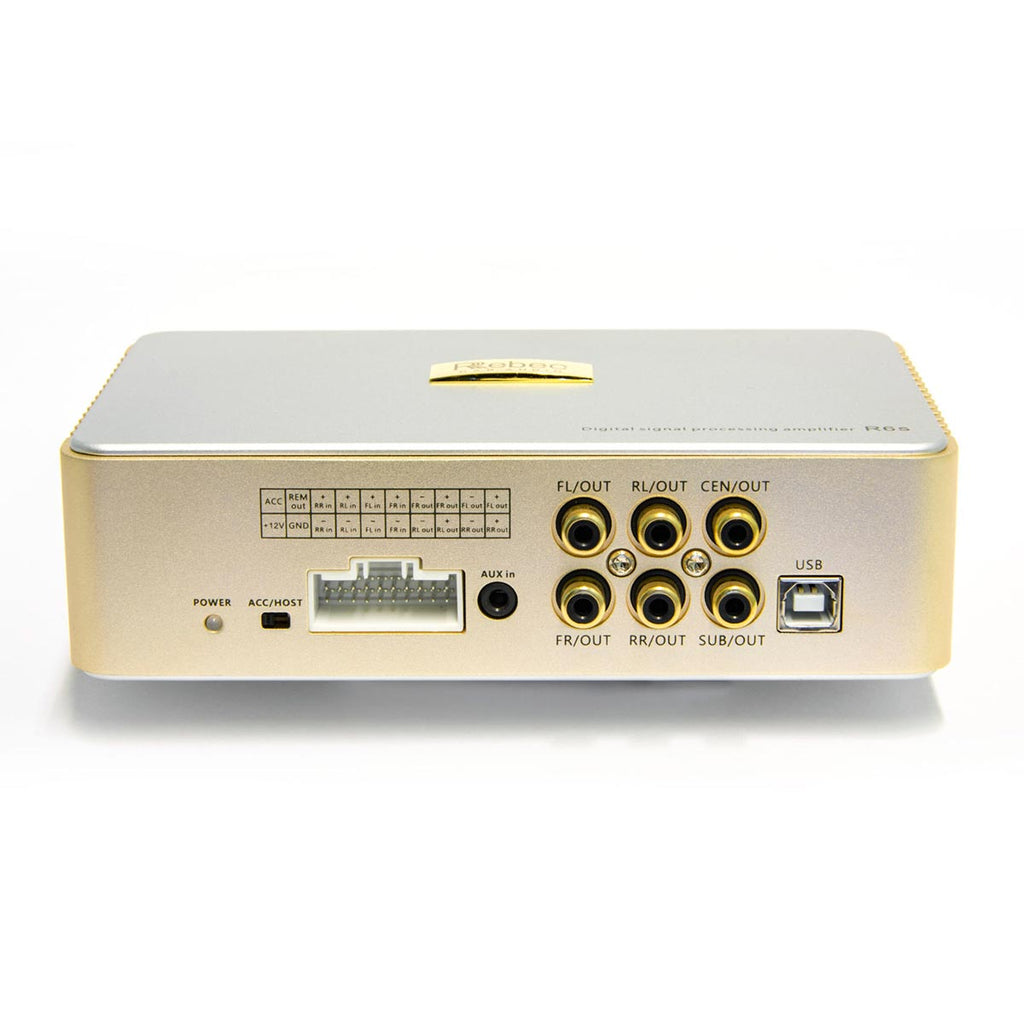

Amplifier:

• 4 x 65W
• Four-channel Hi Level input
• Six-channel RCA outputs (4V)
• Playback range: 10Hz – 22kHz
• Signal to noise ratio: 105dB
• Dimensions 170 x 108 x 47mm

Bluetooth:

• All adjustments can be made by phone
• The possibility to send music from the phone directly to the amplifier.
• Adjusting the volume with the phone's volume buttons or via the app

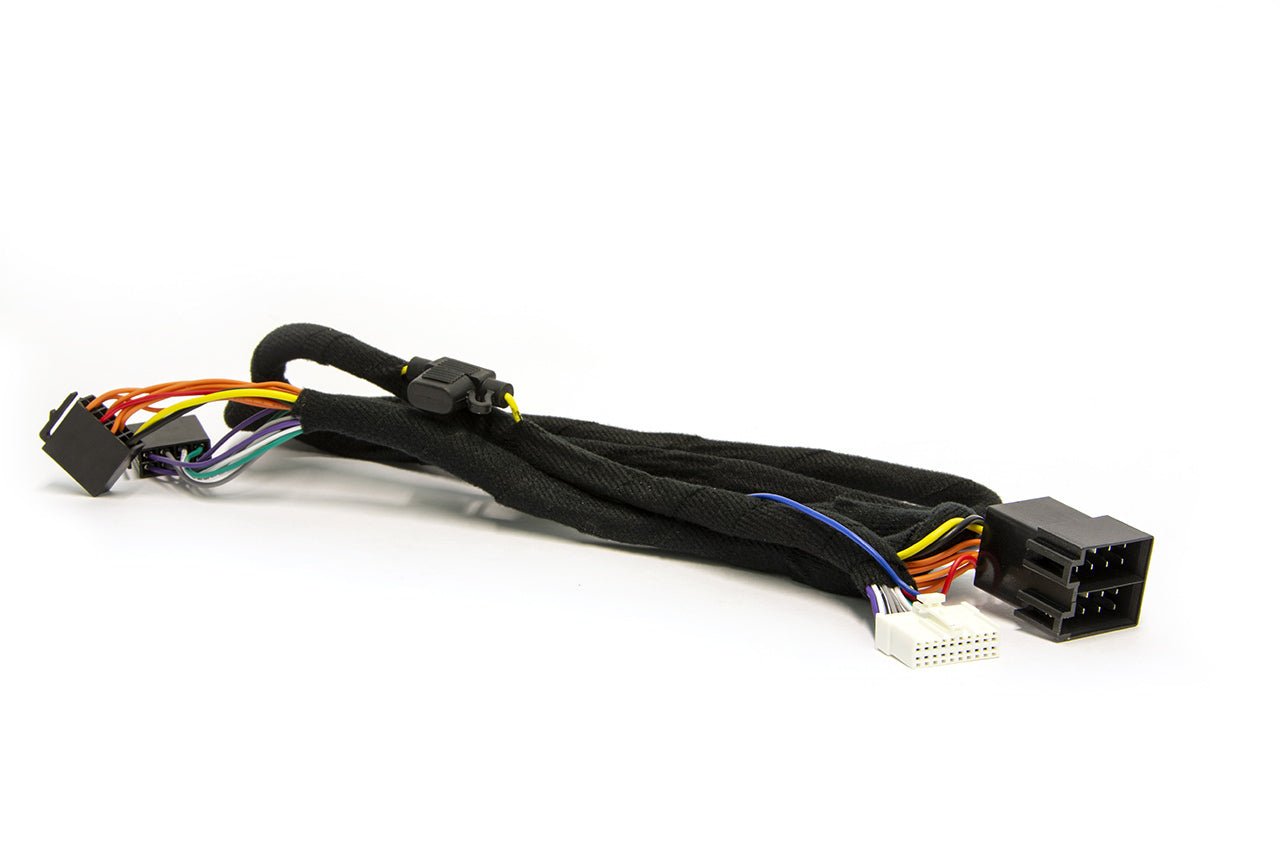

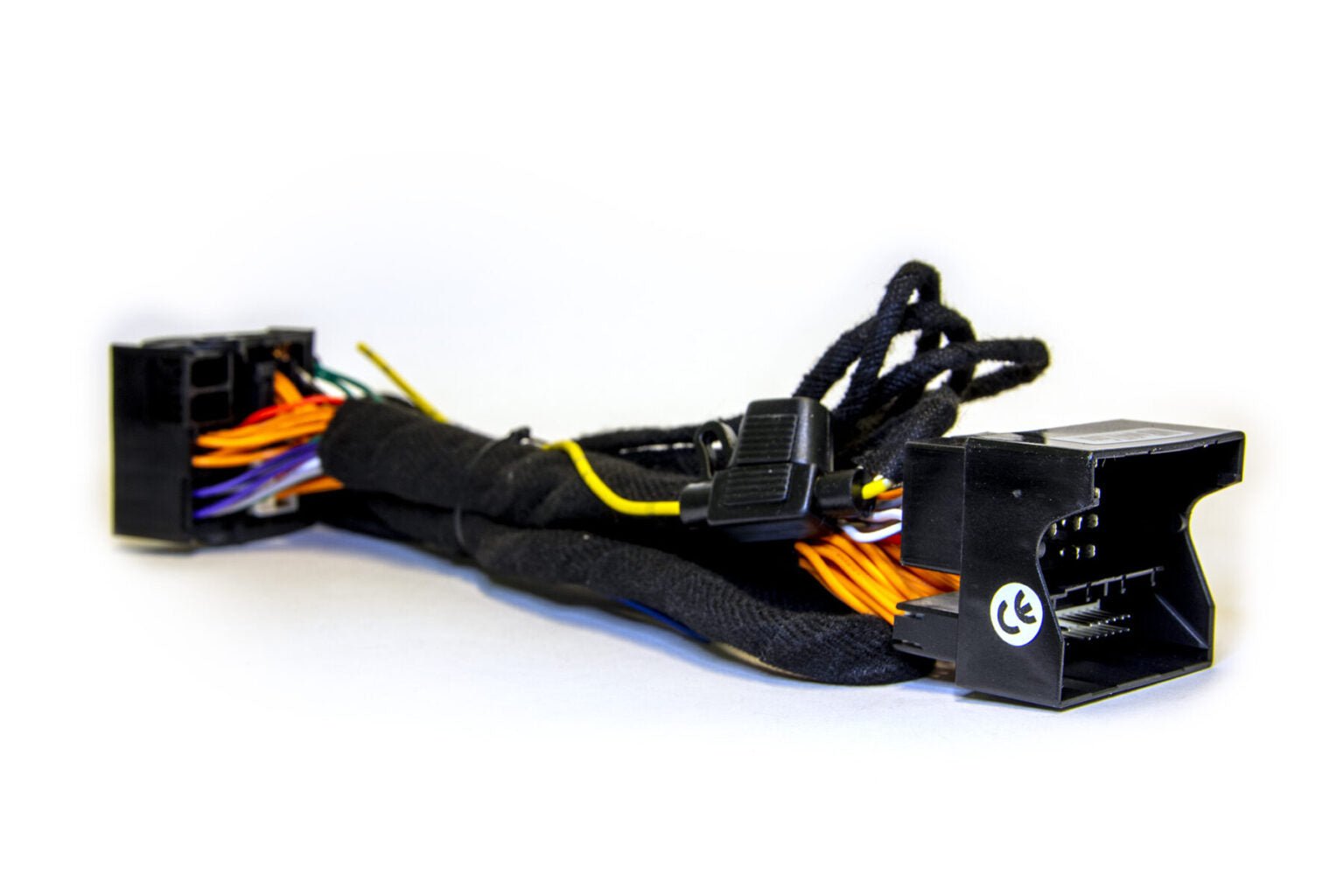

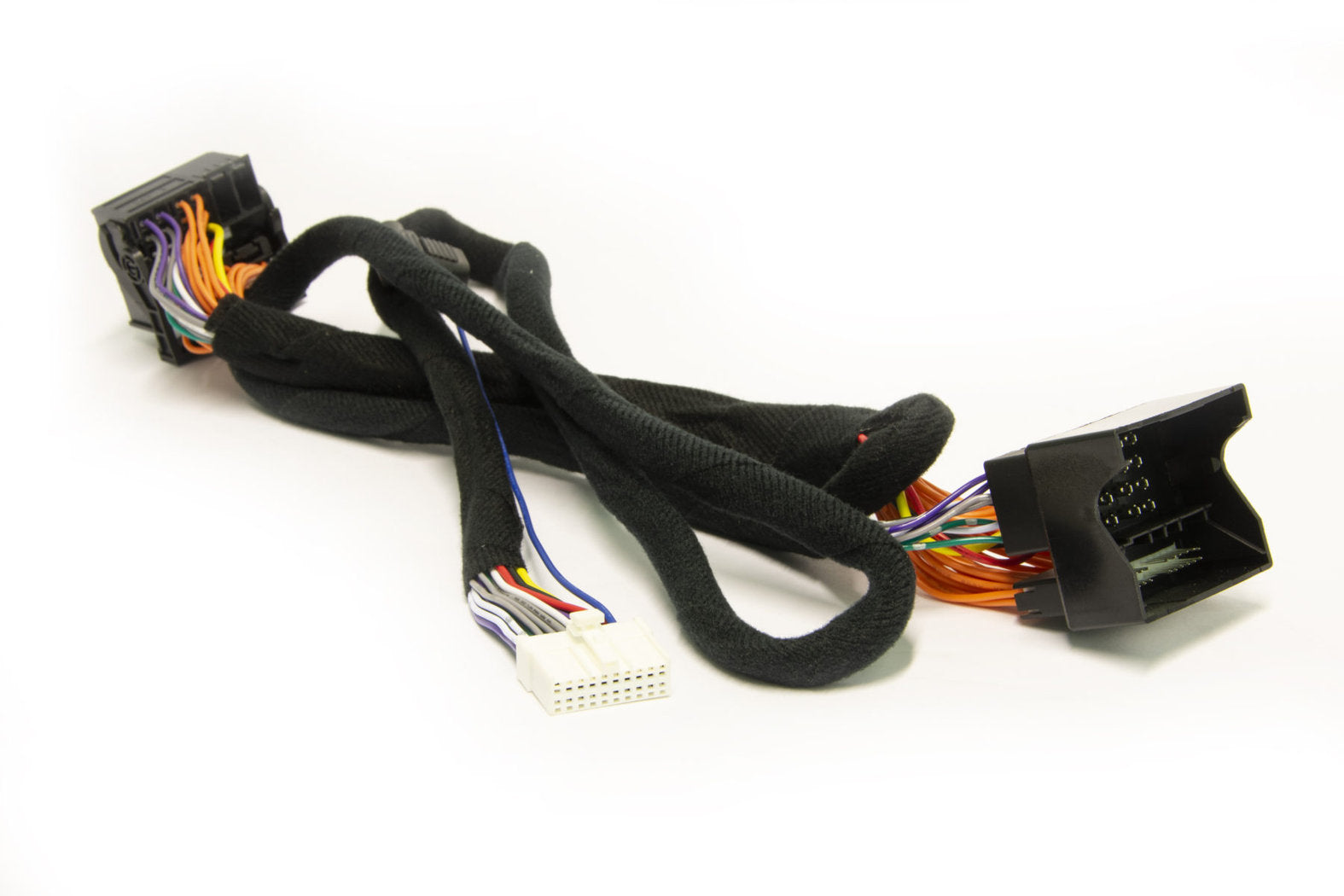

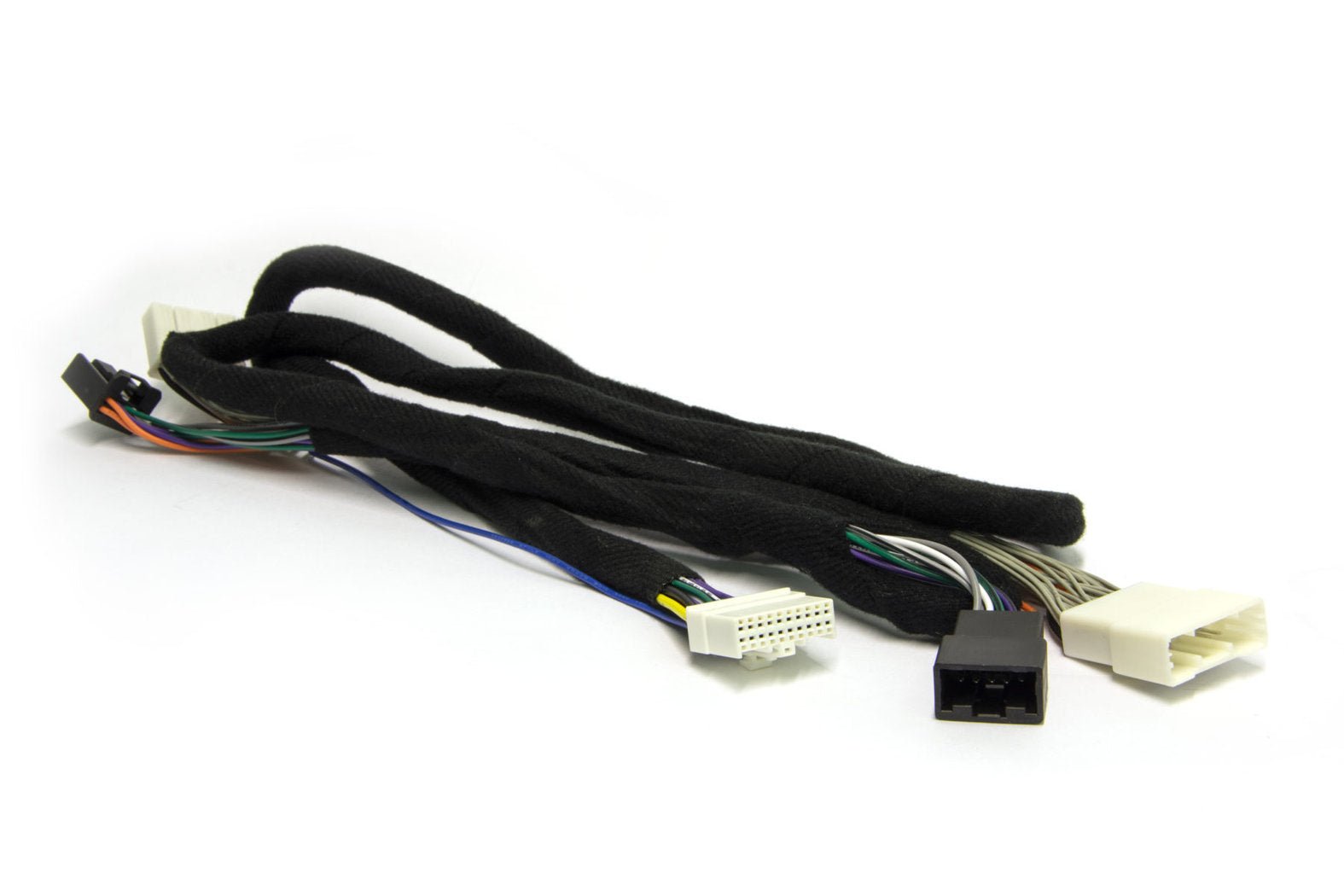

Available wiring harnesses:

MAJOR
Quadlock

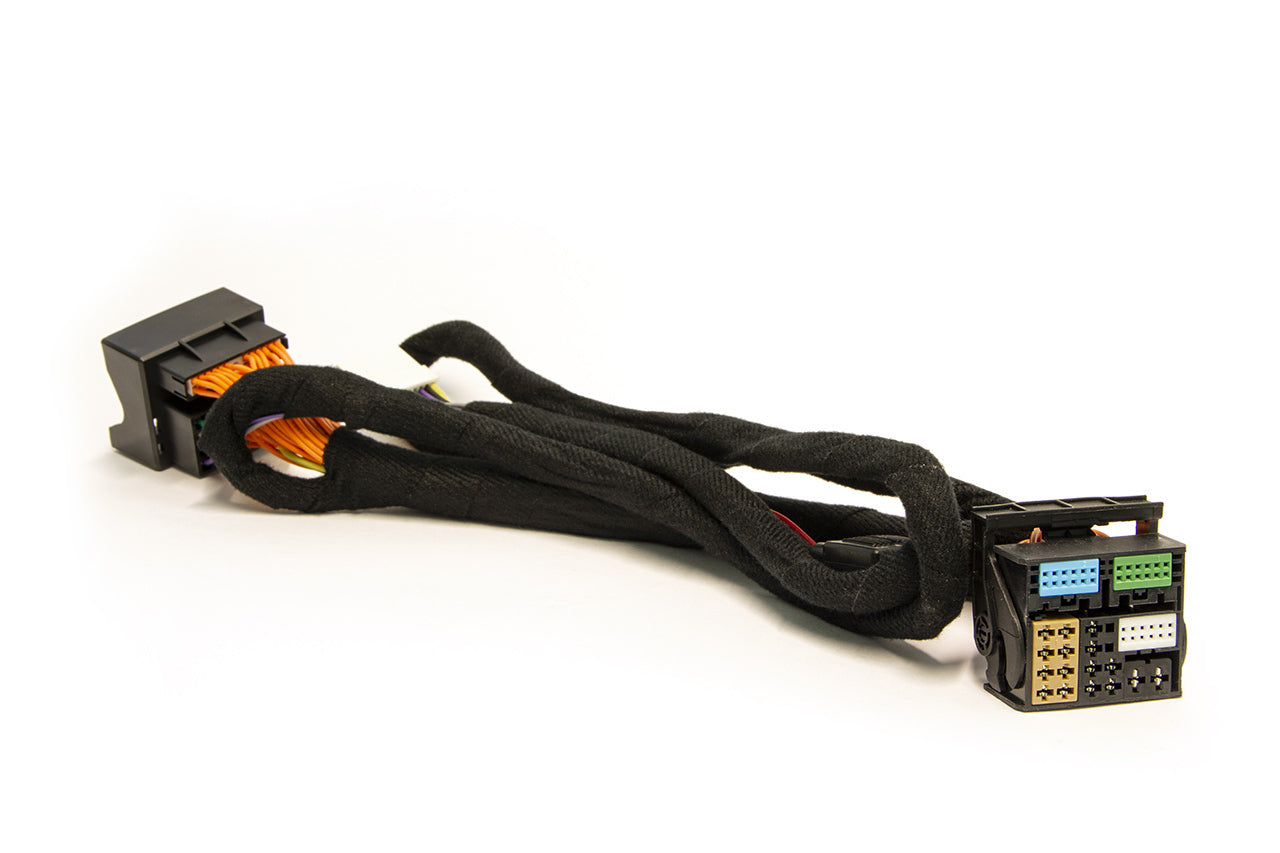

MIB

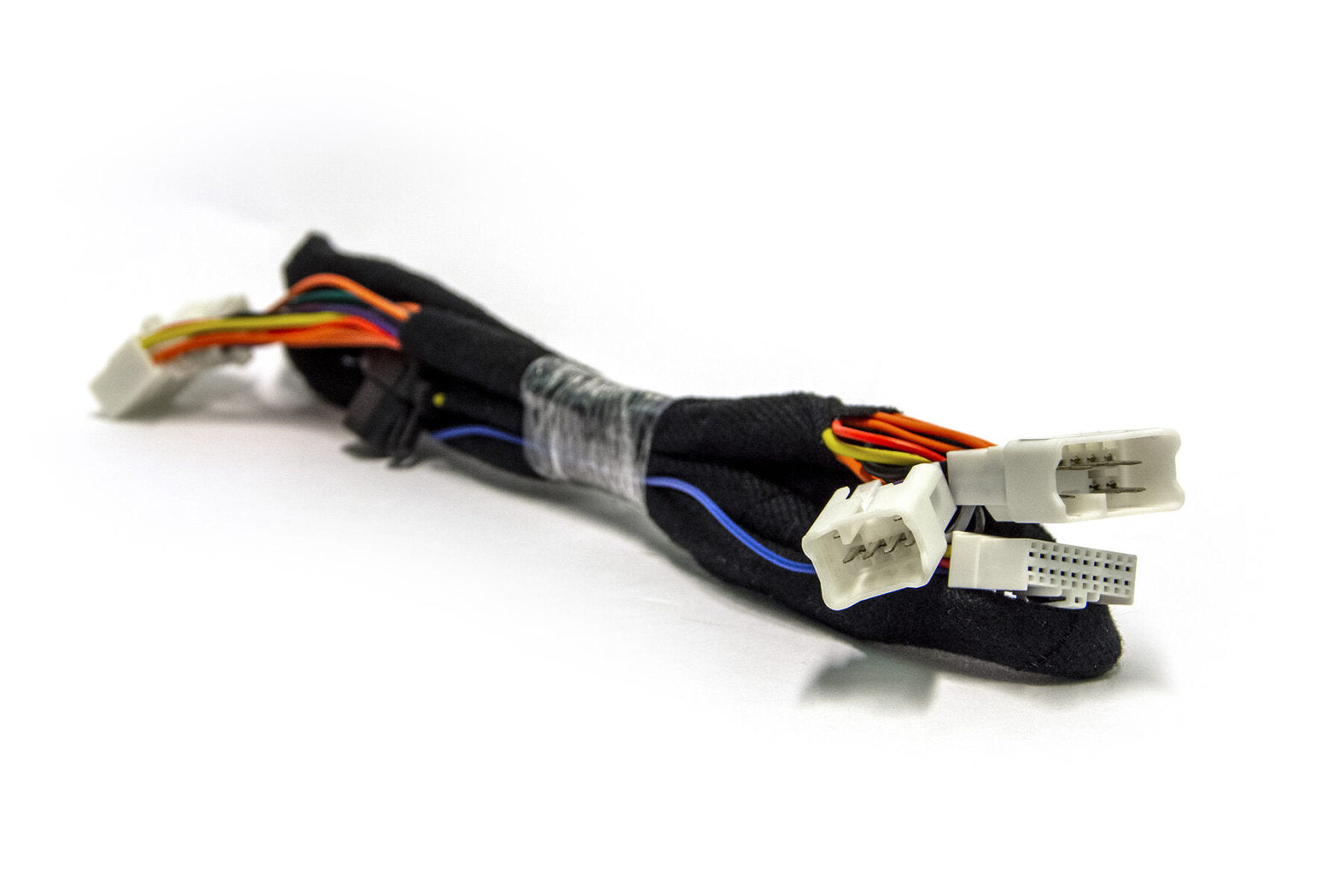

Toyota ->2018
Toyota 2018->
Mercedes Benz Vito W447

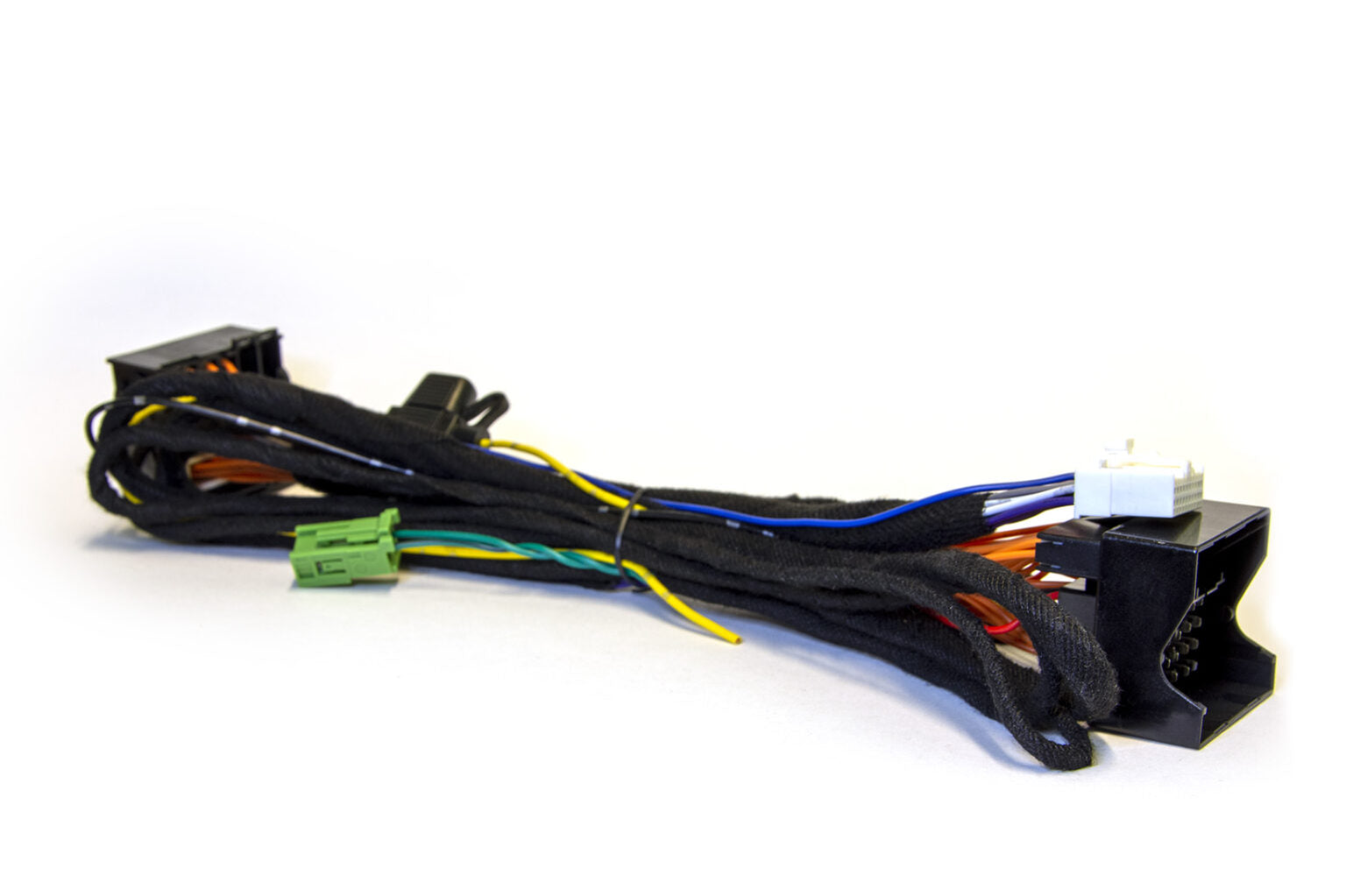

Mercedes Benz W205/W213
