Description
Yamaha A-S1200
Integrated stereo amplifier
Feeling
-
The high-quality PP capacitor produces exceptional musical expression
-
A toroidal transformer with enormous energy for clean, musical sound reproduction
-
The great level meters show nostalgia, the Hi-Fi era.
Openness
-
Low impedance and thick ground cables
Rhythm
-
The mechanical grounding concept maximizes stiffness, producing expressive and rhythmic bass reproduction
Toroidal transformer
Usually used in flagship Hi-Fi equipment, the A-S1200 benefits from the absolute musicality and technical prowess of the toroidal transformer. The A-S1200 amplifier is combined with a set of high-end Hi-Fi features and components, of which the toroidal transformer helps convey the feeling of the music to the listener.
Thick ground wires produce low impedance
The low-impedance concept supported by thick ground wires is a requirement for a high-end Hi-Fi product. This concept produces an open and natural sound image for the A-S1200 amplifier, which brings the artist and the listener closer together.

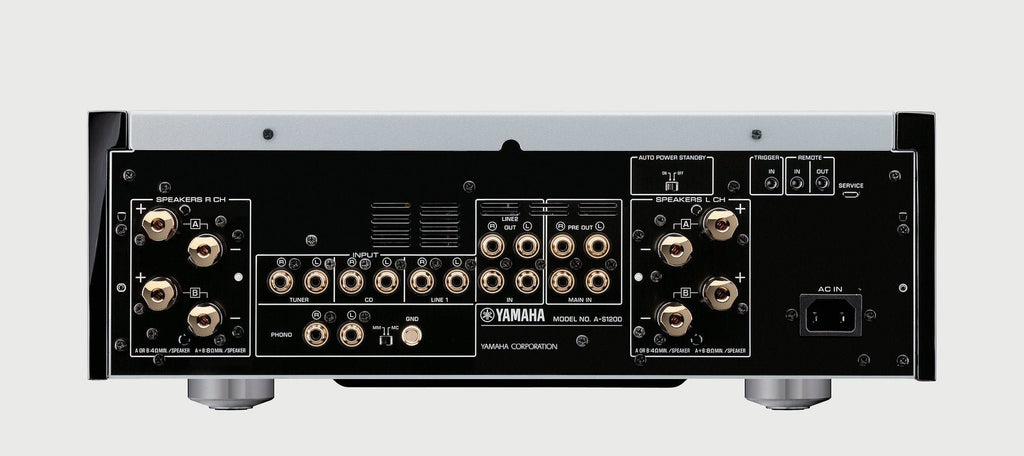

High-quality speaker connectors
The screw connectors and specially designed parts are made by cutting from pure brass, and they ensure a tight wire connection without reducing the sound quality. The screws shaped to fit the fingers firstly look good, secondly they are easy to tighten and open with little force.
Mechanical grounding concept

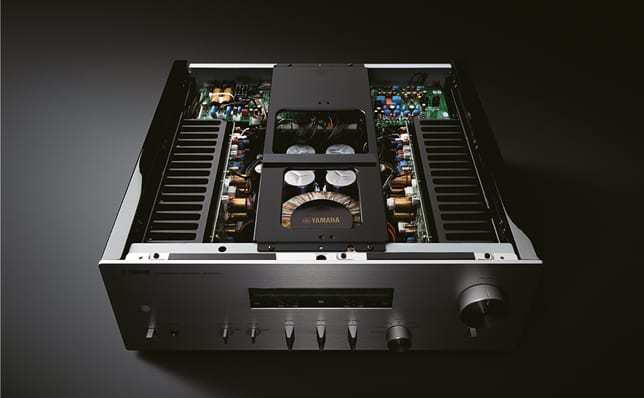

Like the A-S2200 and A-S3200, the A-S1200 model also uses a mechanical grounding concept, which includes welding the device legs directly to the device body, large cooling elements, an efficient transformer and capacitors attached directly to the body. This implementation can eliminate unwanted vibration and achieve an expressive rhythm to the music
Structure
To complement the rigidity of the amplifier's frame, the A-S1200 is equipped with heavy-duty redesigned equipment legs.
Floating and balanced power amplifier & MOSFET transistors
The basic structure of the power amplifier circuit follows Yamaha's own, specially developed floating and balanced power amplifier technology. The plus and minus sides of the output stage have components of the same polarity, and the NFB (negative feedback) circuit and the power supply stage are perfectly isolated for the left and right channels into four different plus and minus sides - this gives the output stage a completely symmetrical shift phase. "Floating" the entire power amplifier stage off the ground eliminates any negative interference that small voltage fluctuations and background noise could cause. The MOSFET transistors of the output elements bring warmth and naturalness to the sound. Their polarity is the same on the plus and minus sides, which contributes to the ideal perfectly symmetrical structure and eliminates the variations in sound quality caused by polarity differences. This is exactly a significant feature of a floating and balanced power amplifier. The end result is a sound with a superior signal-to-noise ratio and a very precise sound field.
High-end electronic volume control for ideal sound reproduction
The A-S1200 model uses a high-quality digital volume control developed for this purpose by New Japan Radio Co. Ltd. It only has ladder-type resistors, which eliminates voltage drop and the effect of sound coloration. The result is a cleaner sound and excellent, fast response to large volume changes and sharp transients.
The symmetrical structure aims for ideal stereo sound reproduction
The left-right symmetry of the structures in the power supply and power amplifier parts enables high-quality separation of left and right channels - which is very important for high-quality two-channel stereo sound reproduction - and optimal weight distribution. The frame has a precisely adjusted edge-to-edge frame and renewed metal legs (for which you can choose spikes or cushions). They give the device good mechanical rigidity and enable stable placement, which significantly reduces the effect of external vibration on the sound quality.
A stand-alone record player amplifier
The turntable amplifier has a separate MC preamplifier and EQ amplifier. With them, you can hear the full, wonderful sound of vinyl records when using both MC and MM boxes.
Visualization of music dynamics with level meters
The front panel of the A-S1200 amplifier has level meters that allow you to enjoy music visually as well. The quick, precise movements of the pointers are illuminated by a beautifully warm LED light. In addition to the volume, the meters can be selected to show peak values. The protective plate of the meter is precisely fitted to the frame.

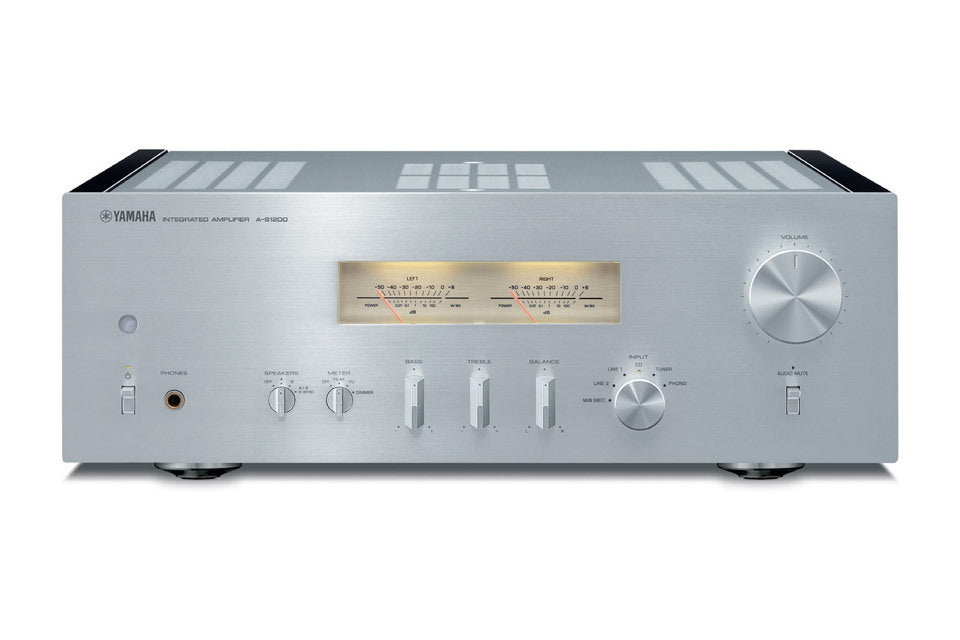

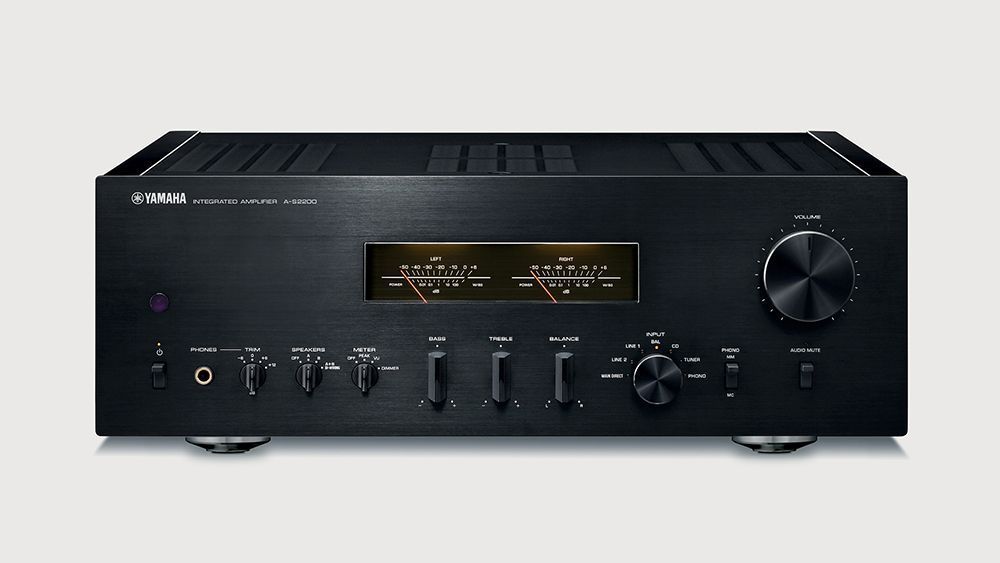

Stylish design
The sophisticated design and construction of the A-S1200 amplifier speaks of Yamaha's appreciation for great craftsmanship and craftsmanship. The attitude stems from a long tradition as a manufacturer of world-class musical instruments. The metal front plate and wooden side panels are beautifully joined together using state-of-the-art processing techniques. The machined aluminum controls feel and look stylish.
A beautifully finished remote control
The remote control repeats the metallic design language of the aluminum panel amplifier. The buttons are conveniently and logically arranged for use. The volume and input source selectors control not only the A-S1200 amplifier but also the Yamaha CD player.
An extended warranty is available for the product. In order to get an extended warranty, you have to complete the registration for 6 months. in from purchasing the product.
Technical information:
-
Frequency response: 5 Hz to 100 kHz (+0/-3 dB)
-
Harmonic Distortion: 0.025% (20 Hz to 20 kHz, 90 W/8 ohm)
-
Maximum power: 2 x 160 W (4 ohm)
-
Remote control: yes
-
Detachable power cord: yes
-
Signal-to-noise ratio: 100 dB (CD)
-
Dimensions (W x H x D): 435 x 157 x 463 mm
-
Weight: 22 kg
